• KUE KEN Model 126 BIG BITE - 42” x 36” Double Toggle Jaw Crusher.
• Upto a Massive 490 tonnes per hour (TPH) production rate (as per Kue Ken specifications enclosed).
• Double Toggle Configuration for crushing without rubbing. Excellent for hard, abrasive materials and low wear rate compared with single toggle.
• BIG BITE Swinging Jaw for maximum feed gap opening.
• Bearings, Main eccentric shaft, swing jaw, toggles seats and plates, main frame and pitman in good condition. All workshop checked and replaced where needed. Painted
• Jaws Plates and Wear Plates in Good Condition 80-90%.
• Double Toggle Configuration for crushing without rubbing. Excellent for hard, abrasive materials and low wear rate compared with single toggle.
• Lippmann 20' Vibrating Grizzly Feeder with an 6’ grizzly bar section, wear resistant liners in the side and in the bottom pan of the feeder, heavy-duty bearings, 30 HP TEFC electric motor.
• Steel fabricated bypass chute directing the grizzly fines down to the under crusher belt. Extra heavy-duty steel fabricated hopper.
• 48” front discharge conveyor including a steel fabricated impact tray with polyurethane replaceable liners, winged tail pulley, lagged head pulley, 20 HP electric motor, shaft mount gear reducer, heavy duty belting.
• Mounted on a heavy-duty steel fabricated skid structure, including operator’s platform, with access ladder.
• Price is Ex-Mid West USA.
• Listing Reference No. #KK126X
• Availability: Immediate (subject to prior sale).
* PRICE: POA - Contact Us.
* Click to download print ready brochure #KK126X |
| |
| KUE KEN BIG BITE JAW CRUSHER BROCHURE |
|
| |
|
|
|
| |
| KUE KEN BIG BITE 126 - 42" x 36" Jaw Crusher (#KK126X) |
 |

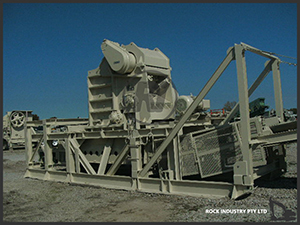

FOR SALE: KUE KEN BIG BITE 126 - 42” x 36” Double Toggle Jaw Crusher. Listing Ref: #KK126X
COMPLETE PLANT including frame, discharge conveyor, LIPPMAN feeder, drive motor and operator controls.
GOOD Condition, Workshop Checked and Parts Replaced as requied, Painted Ready for Work. |
| |
 |
